Stripe Rust Disease - How To Determine Severity (*doc in progress*) | |
| |
|
|
| |
|
|
| |
| 1. | Walk into the field 20-meters. Then walk a W-shaped pattern, looking at 20 plants at each of 5 locations. Each location should be at least 20-meters apart (See Figure 1). |
| 2. | Estimate the average disease severity in the field using the Modified Cobb Scale (Figure 2). |
| 3. | Enter the average severity number into the App where prompted. |
 |

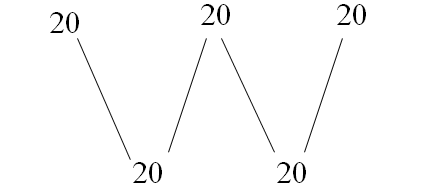

Figure 1: A W-shaped pattern for disease monitoring in the field.

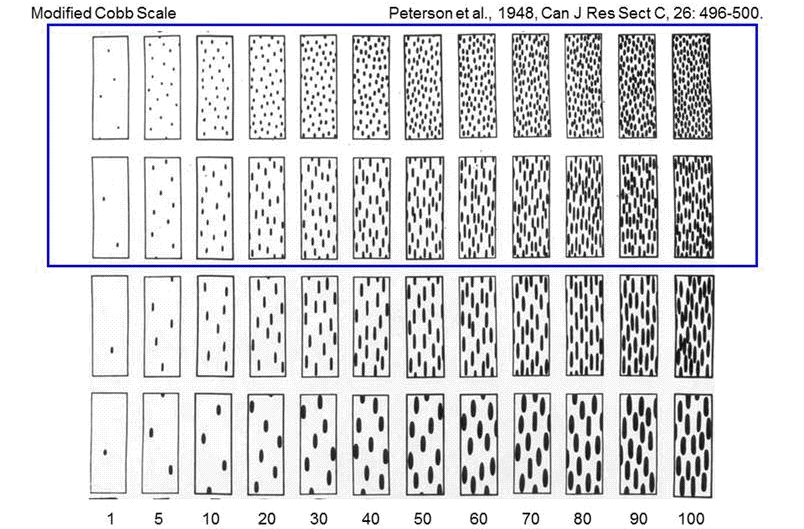

Figure 2: Modified Cobb Scale diagram for estimated cereal leaf disease severity. |
|
|
| |
|
|
| |
