Liquid Manure Injection Systems: Performance Evaluation



Download 245K pdf file ("743-1.pdf")PDF
(245K)
     Subscribe to our free E-Newsletter, "Agri-News" (formerly RTW This Week)Agri-News
This Week



 Injector system tested | Liquid placement assessment | Crop residue cover and soil disturbance | Odour | Draft measurements | Summary

Liquid manure injection offers a number of advantages over broadcasting:

  • fewer odours
  • ability to place nutrients directly into the seedbed
  • reduce loss of fertilizer value
Because of these advantages, more manure applicators are using liquid manure injection equipment than ever before. This increase in usage prompted Alberta Agriculture, Food and Rural Development's Technical Services Division to test the performance of five common liquid manure injection openers:
  • two low-disturbance injectors (K-Hart and Yetter)
  • two high-disturbance injectors (Spike and Sweep)
  • an aerator (Aerway)
These five systems were each tested for several features:
  • liquid placement
  • soil disturbance
  • crop residue and disturbance
These tests were done while applying water at rates ranging from 34,000 to 146,000 L/ha (3,000 - 13,000 gal/ac) and moving at ground speeds ranging from 2.6 to 10.6 km/h (1.6 - 6.6 mi/h).

Each system was also evaluated for odour control at an application rate of 67,000 L/ha (6,000 gal/ac) of liquid hog manure at 0, 4, and 24 hours after injection. Draft tests were performed for each injector (with the exception of the Aerway) at depths ranging from 8 to 15 cm (3 - 6 in).

Injector Systems Tested

Yetter. The Yetter Avenger injector system (Figure 1) consisted of a 64 cm (25 in) diameter offset disk angled at 5 degrees to the direction of travel. A 38 cm (15 in) diameter rubber cleaning wheel was mounted to the exposed side of the disk and a metal scraper was mounted on the protected side of the disk. A drop tube was located directly behind the offset disk. The Yetter included a set of concave closing disks attached to the frame behind the drop hose. The closing disks were removed during testing as they produced a lot of soil disturbance.

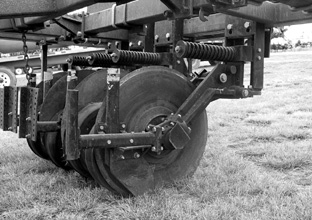

Figure 1. Yetter Avenger injector

K-Hart. The modified K-Hart injector system was a K-Hart fertilizer bander modified to perform liquid manure injection (Figure 2). The original bander consisted of a 46 cm (18 in) diameter coulter and a drop-hose housing for fertilizer. Changes were made to the drop hose housing in order to fit in a liquid manure drop hose.

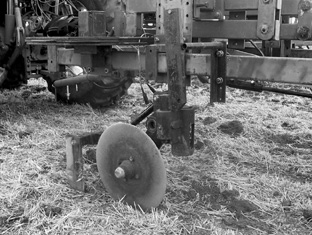

Figure 2. Modified K-Hart injector

Sweep. The Sweep injector system consisted of a 26.7 cm (10.5 in) wide sweep opener mounted on a 5 cm (2 in) wide C-shank (Figure 3). A metal tube was mounted directly behind the sweep to hold a drop hose.

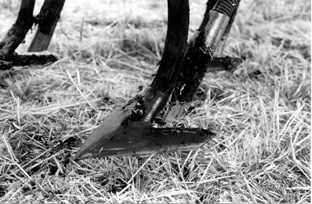

Figure 3. Sweep injector

Spike. The Spike injector system had a 5 cm (2 in) wide spike opener mounted on a 5 cm (2 in) wide C-shank (Figure 4). A metal tube was mounted directly behind the spike to hold a drop hose.

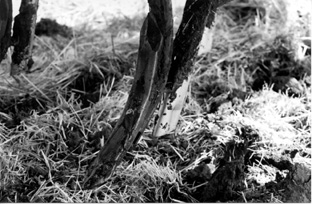

Figure 4. Spike injector

Aerway. The Aerway system consisted of a series of spikes mounted on an axle (Figure 5). A drop hose was mounted behind each spike set. The spikes were spaced 19 cm (7.5 in) apart and penetrated the soil creating a soil aeration effect. The drop hoses then delivered the liquid to the soil surface, and to the spike holes in the soil surface.

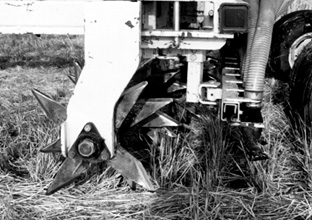

Figure 5. Aerway aerator

Liquid Placement Assessment

The liquid placement assessment was carried out over several days in heavy clay loam Dark Brown Chernozem soil. This soil was very dry and hard. Immediately after injecting the soil with the different amounts of water, testers watched for several factors:
  • pooled liquid
  • wet soil
  • any other evidence of liquid on the surface
Ratings. Table 1 shows the average liquid placement rating results.

Table 1. Average liquid placement ratings
Rate L/ha (gal/ac)
34000 (3000)
56000 (5000)
79000 (7,000)
101000 (9,000)
124000 (11,000)
146000 (13,000)
Low disturbance (disk injectors)
Yetter
1.25ab
1a
1.5a
1.5a
1.25a
1.75a
K-Hart
2c
2b
2a
2.5bc
2.75c
3b
High disturbance (shank injectors)
Sweep
1a
1.5ab
1.5a
1.75ab
2b
2a
Spike
1.5b
1.5ab
1.5a
1.75ab
1.75ab
1.75a
Aerator
Aerway
3d
3c
3b
3c
na
na
Rating scale: 1 = no evidence of liquid on surface, 2 = evidence in furrow only, 3 = evidence on surface outside of furrow
Averages within a column followed by the same letter are not significantly different (P<0.05)

The goal of the injectors was to apply the liquid at or below the soil surface:
  • The Aerway pooled the liquid manure on the surface at all rates.
  • When using the other injectors, evidence of liquid manure increased as the manure rate increased.
  • The K-Hart injector pooled the manure at the highest rate.
Crop Residue Cover and Soil Disturbance

Disk injectors produce considerably less residue and soil disturbance than do shank injectors.

The disk injectors and the Aerway had less than 30 per cent soil disturbance at all ground speeds, making them compatible with low-disturbance cropping systems such as direct seeding and forage production.

The shank injectors are incompatible with low-disturbance cropping systems. However, disk injectors may not penetrate hard dry soil as well as shank injectors.

Odour

With the exception of the Spike, all the equipment tested provided acceptable odour control immediately after application and in the hours following injection:
  • The Spike showed increased odour emissions 24 hours after injection, but this result may have been caused by high background odours or an error in measurement.
  • Odour emissions lessened rapidly during the hours following injection for all treatments as the manure was being absorbed into the soil and along fracture lines.
  • The odour concentrations at 4 and 24 hours were below detectable levels for the odour measuring panel for all treatments.
Draft Measurements

Draft forces were measured using a cart with one injector for all systems except the Aerway at various depths. Only the Yetter was able to penetrate to a 15 cm (6 in) depth because of its high-force trip spring and design. The Spike and Sweep were operated with a medium-duty shank and trip; they might have reached deeper depths with a heavy-duty shank and trip.

The draft measurements were taken under higher than normal soil moisture conditions in well-packed soil. Testing showed the following:
  • The K-Hart and Yetter produced the lowest draft measurement at the shallow depth.
  • The Spike and Sweep produced the highest draft measurement.
  • The draft of the Yetter increased substantially as the depth increased. Its draft at 6 in (15 cm) is similar to the draft of the Sweep at 5 in (13 cm).
The draft requirement results are shown in Table 2.

Table 2. Draft resultsz
Depth
8 cm (3 in)
10 cm (4 in)
13 cm (5 in)
15 cm (6 in)
Injector
N
(lbf)
kW
(hp)
N
(lbf)
kW
(hp)
N
(lbf)
kW
(hp)
N
(lbf)
kW
(hp)
K-Hart
310
(70)
0.56
(0.75)
490
(109)
0.89
(1.2)
1590
(358)
2.8
(3.8)
nay
nay
Spike
1580
(355)
2.8
(3.8)
1950
( 438)
3.5
(4.7)
nay
nay
nay
nay
Sweep
2060
(462)
3.6
(4.9)
2410
(542)
4.3
(5.8)
2550
(573)
4.5
(6.1)
nay
nay
Yetter
600
(134)
1.0
(1.4)
890
(199)
1.6
(2.1)
1450
(326)
2.6
(3.5)
2360
(531)
4.2
(5.7)
y Injector did not penetrate soil to required depth
z Draft measurements performed at a ground speed of 6.7 km/h (4.0 mi/h) with one injector

Summary

When selecting manure injection technology, it is important to weigh the pros and cons of each system being considered. Several conclusions were shown in the study:
  • High-disturbance injection technology controls odour, but results in a lot of residue and soil disturbance.
  • Low-disturbance injection technology provides minimal residue and soil disturbance, but does not control odour as well as high-disturbance injection equipment (although all produced acceptable results).
  • All technologies provide acceptable nutrient placement.
A producer's individual situation should dictate which system to use. For example, a producer practicing direct seeding may choose low-disturbance injection while a producer practicing tillage may choose high-disturbance injection.

For more information
For more information on this study, see the full report called Performance Evaluation of Five Liquid Manure Injection Systems (676 Kb). Call the Alberta Ag-Info Centre at 1-866-882-7677 for further information.

Prepared by:
Karen Stewart - Livestock Environmental Specialist
Technical Services Division

Source: Agdex 743-1. August 2005.
